1.14inch TFT LCD Display Color Screen SPI interface for wearable design

1.14 inch tft lcd with 135*240 dots with full viewing angel with IC ST7789P3
Item No: HEM-T1D14HP-017
LCD type : 262K, a-SI, TFT TRANSMISSVIE,
Diagonal length :1.14 inch
Recommended Viewing Direction: ALL O’Clock
Dot arrangement: 135 (R.G.B)*240 Dot

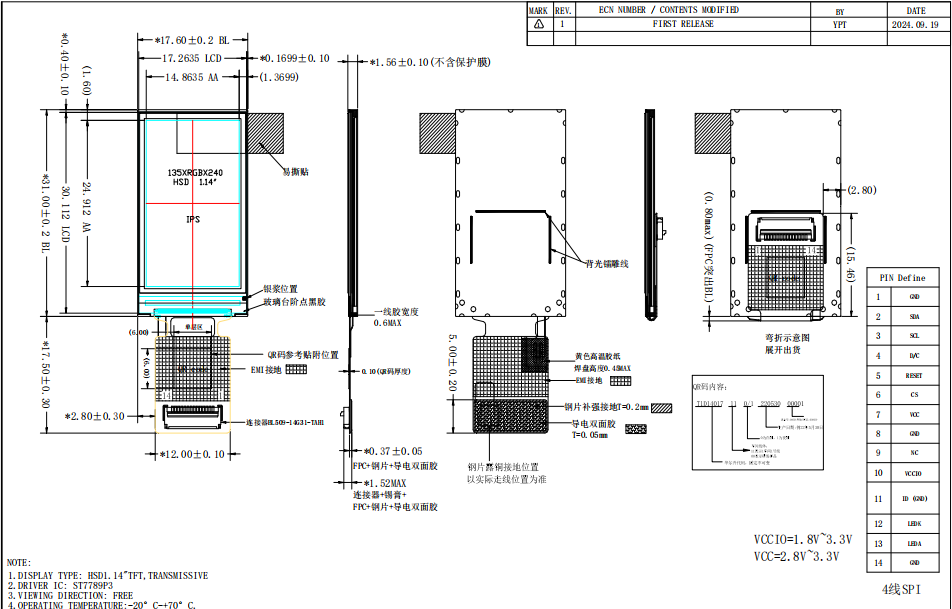

Module size (W*H*T):17.60*31.00*1.56 mm
Active area (W*H):14.86*24.91 mm
Pixel size (W*H):0.1101*0.1038mm
Backlight Type :LED
Drive IC :IC ST7789P3
Interface Type : SPI 4LINE
