1.78inch 368*448 QSPI Smart Watch IPS AMOLED Screen with Oncell Touch Panel

Short Description:

AMOLED stands for Active Matrix Organic Light Emitting Diode. It’s a type of display that emits light itself, eliminating the need for a backlight

The 1.78-inch OLED AMOLED display screen is a remarkable application of Active Matrix Organic Light Emitting Diode (AMOLED) technology. With a diagonal measurement of 1.78 inches and a resolution of 368×448 pixels, it delivers an exceptionally vivid and sharp visual display. The display panel, featuring a real RGB arrangement, is capable of producing an extensive range of 16.7 million colors with rich color depth.

This 1.78-inch AMOLED screen has gained significant popularity in Smart Watches and has become a preferred option for smart wearable and other portable electronic devices, owing to its outstanding visual performance and compact size.

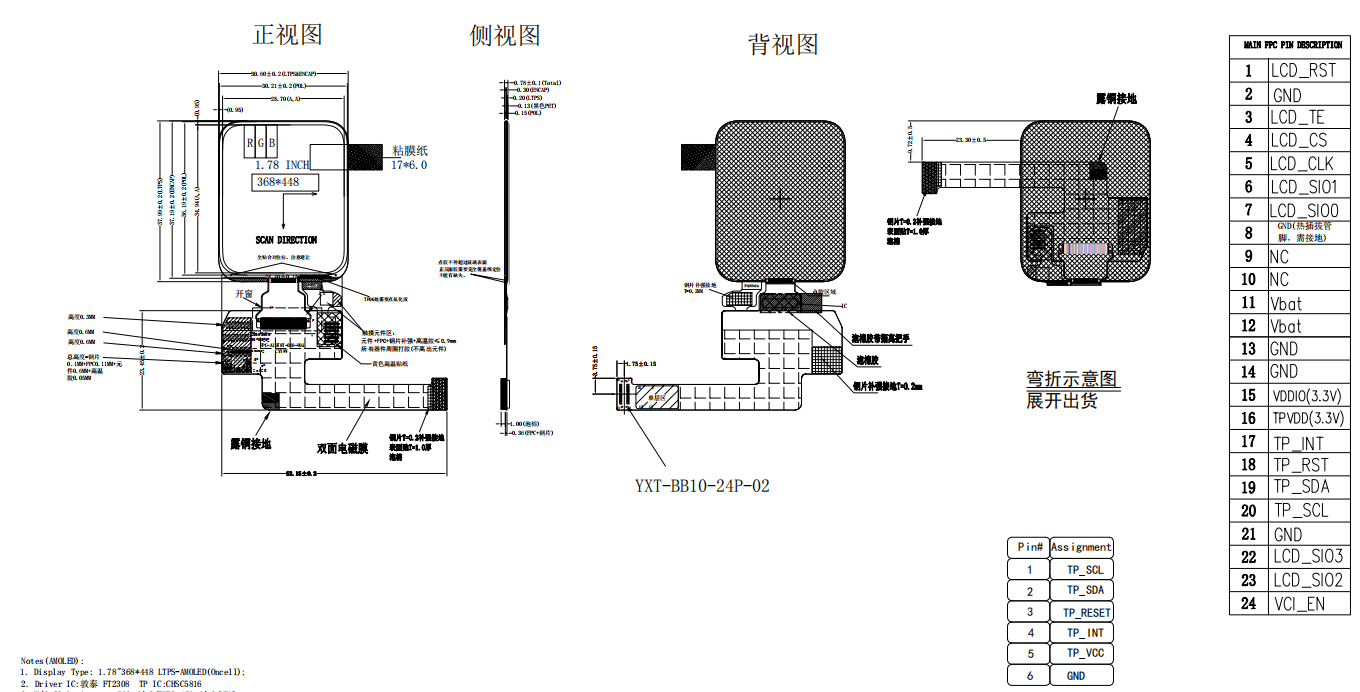

1.78inch AMOLED Drawing

AMOLED Displays Application


  • Display type: 1.78"368*448 LTPS-AMOLED(Oncell)
  • Diagonal length: 1.78inch
  • Dot arrangement: 368(R.G.B)*448dot
  • Module size(W*H*T): 33.8*40.9*2.43mm
  • Active area(W*H): 28.70*34.95mm
  • Pixel size(W*H): 0.078*0.078mm
  • Drive IC: ICNA3311(CO5300) or Compatible
  • TP IC: FT6416-M00
  • Power IC: BV6802W
  • Interface Type: Panel:QSPI
  • Luminance: 500cd/m2(TYP),450cd/m2(MIN);
  • Operating Temperature: -20°C ~70°C
  • Storage Temperature: -30°C ~ 80°C
  • Flatness AMOLED bottomside: ≤0.25mm;
  • Product Detail

    HEM Displays Quality Control

    Product Tags

    Product Parameters

    Diagonal Size 1.78 inch OLED
    Panel type AMOLED, OLED screen
    Interface QSPI/MIPI
    Resolution 368 (H) x 448(V) Dots
    Active Area 28.7(W) x 34.9(H)
    Outline Dimension (Panel) 35.6  x 44.62  x 0.73mm
    Viewing direction FREE
    Driver IC ICNA5300
    Storage temperature -30°C ~ +80°C
    Operating temperature -20°C ~ +70°C
    1.78inch AMOLED Display SPEC

    Product Details

    AMOLED, which is a display technology applicable to electronic devices such as smart wearables and sports bracelets, is constituted of tiny organic compounds. Upon the passage of an electric current, these compounds give off light. The self-illuminating pixels are capable of presenting vibrant colors, high contrast ratios, and deep blacks, thereby making AMOLED displays highly favored by consumers.

    OLED advantages:
    - Thin (no backlight required)
    - Uniform brightness
    - Wide operating temperature range (solid-state devices with electro -optical properties that are independent of temperature)
    - Ideal for video with rapid switching times (μs)
    - High contrast (>2000:1)
    - Wide viewing angles (180°) with no gray inversion
    - Low power consumption
    - Customized design and 24x7 hours technical supported
